Accessorires infiltration

Recommended accessories

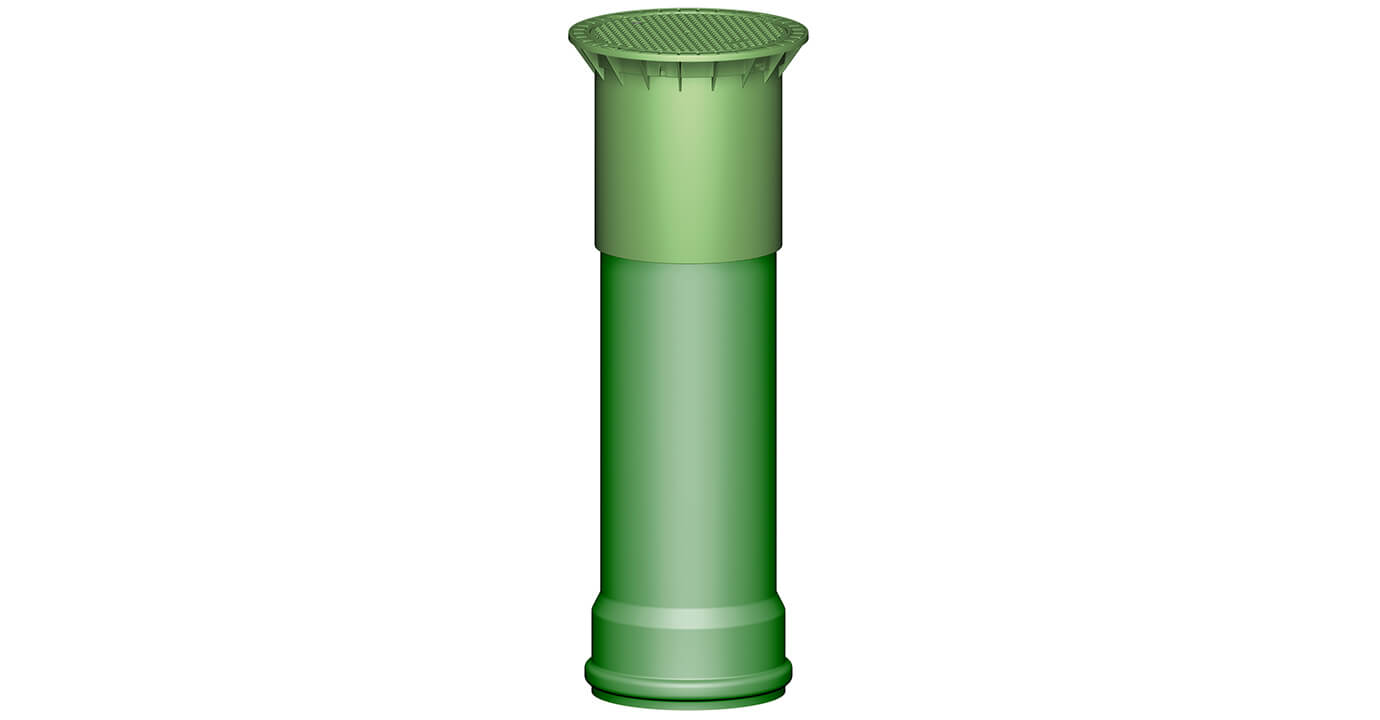

Tank dome DN 200 Herkules-Tank

with telescopic end 1 metre (3,3ft) to be cut on demand

Order.-Nr. Height [mm] Weight [kg] Ø [mm]
322026 1161 4.23 271

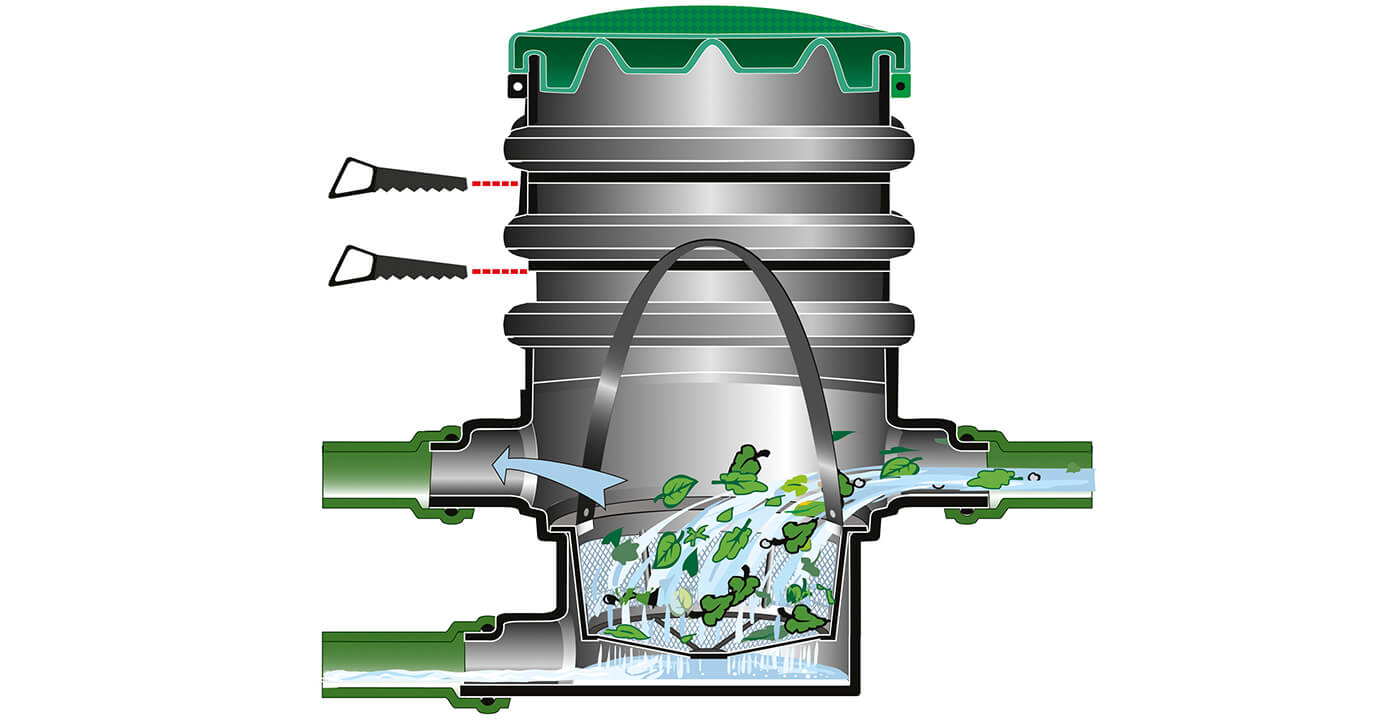

Underground fine filter

Large, removable sieve basket with handle

  • For roof surfaces up to max. 300 m²
  • Height 800 mm, cuttable
  • Connections DN 100/150
  • Requires regular servicing

Order.-Nr. Length [mm] Width [mm] Height [mm] Depth of drainage from ground level [mm] Inlet depth from ground surface [mm]
340002 590 840 832 750 500
Weight [kg] Overflow depth from ground surface [mm]
9.71 500
Connecting dimensions: (All dimensions are calculated middle of connection until earth top edge)
