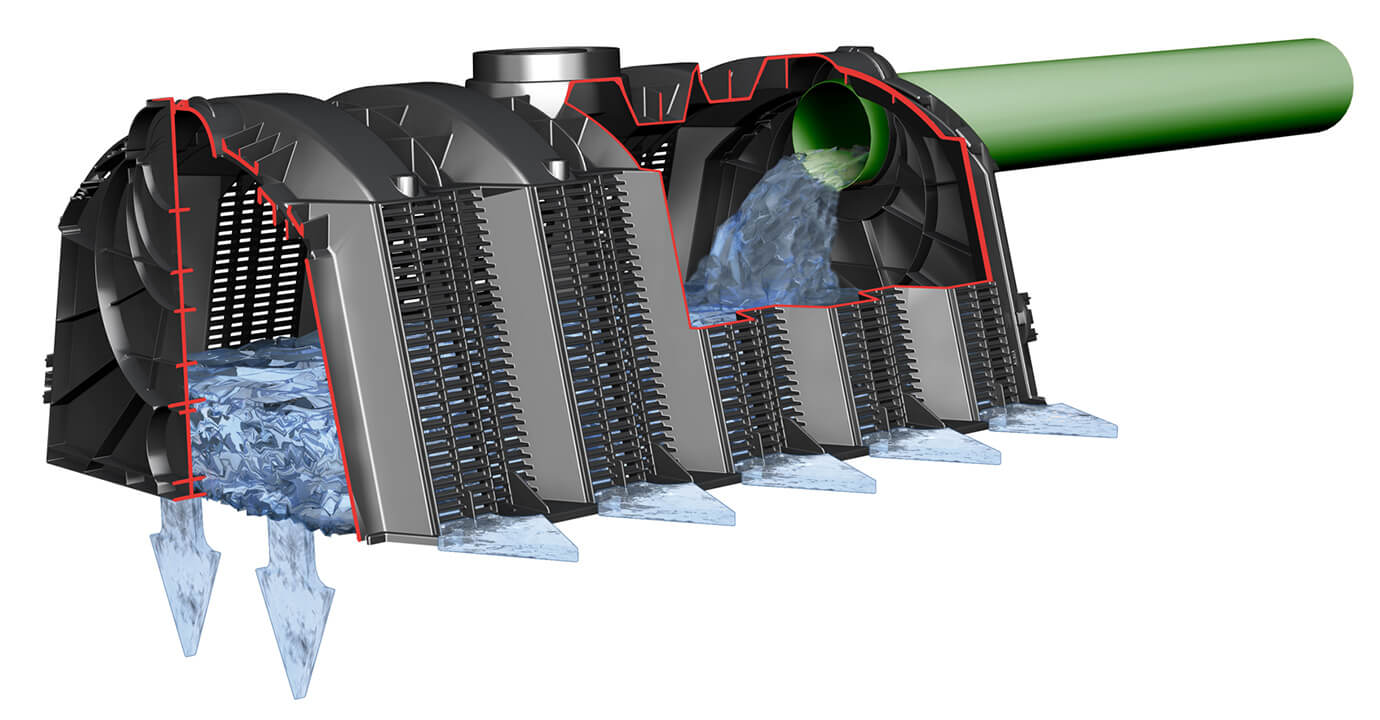

4rain infiltration tunnel

The optimal addition to your rainwater tank

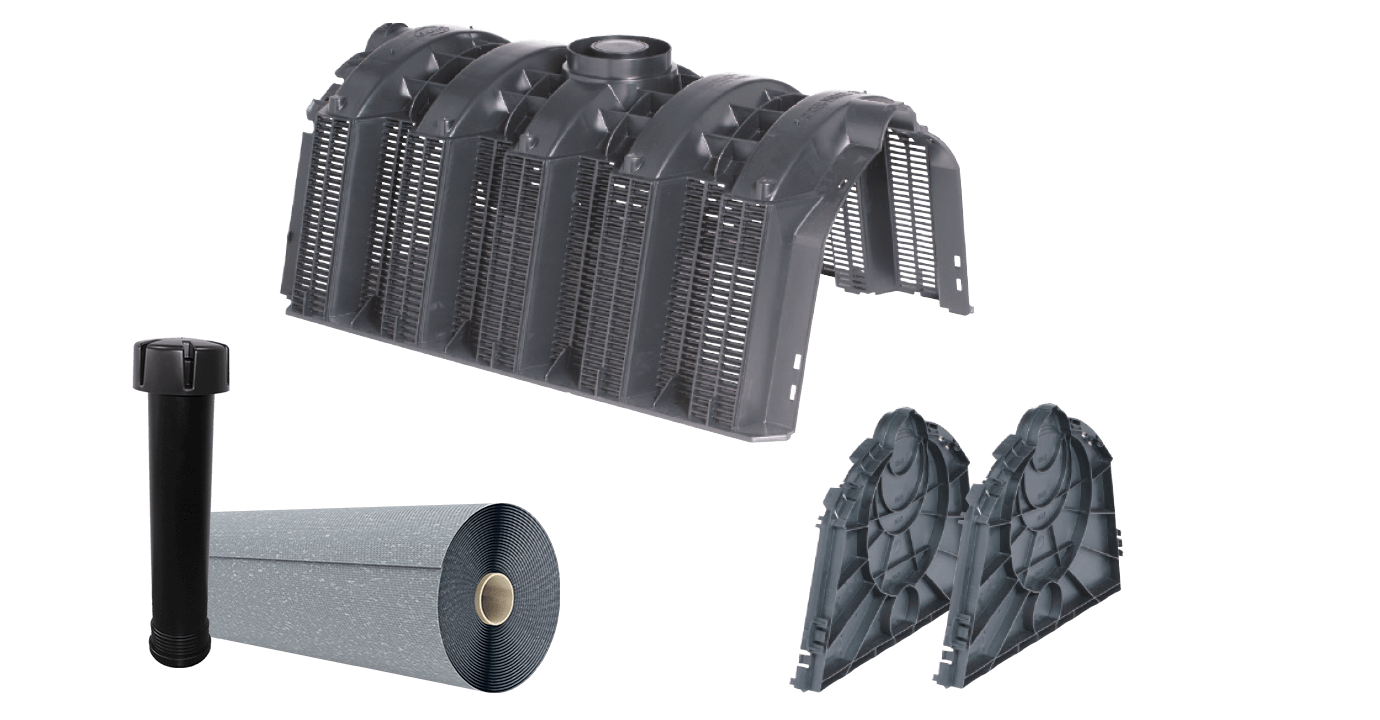

Set Percolation Tunnel 300, suitable for vehicle loading 3600L

Instructions Infiltration tunnel

PDF 5.46 mb

Dimension drawing Infiltration tunnel

PDF 755 kb

300 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
230020	300	1220	800	510	13
Quantity
1

600 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
230020	600	2380	800	510	26
Quantity
2

900 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
230024	900	3540	800	510	38
Quantity
3

1.200 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
230021	1200	4700	800	510	48
Quantity
4

1.800 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
230022	1800	7020	800	510	71
Quantity
6

2.400 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
410122	2400	9340	800	510	88
Quantity
8

3.000 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
410123	3000	11660	800	510	109
Quantity
10

3.600 l

Order.-Nr.	Volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]
410124	3600	13980	800	510	130
Quantity
12
