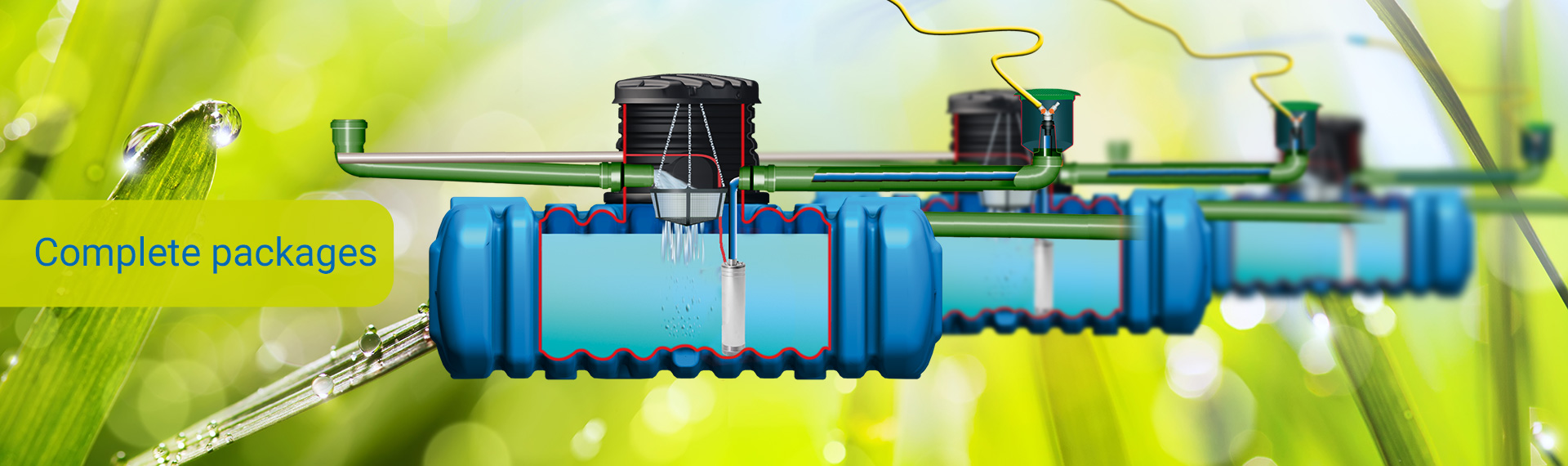

Complete packages

Everything from a single source. All packages can be combined with infiltration set.

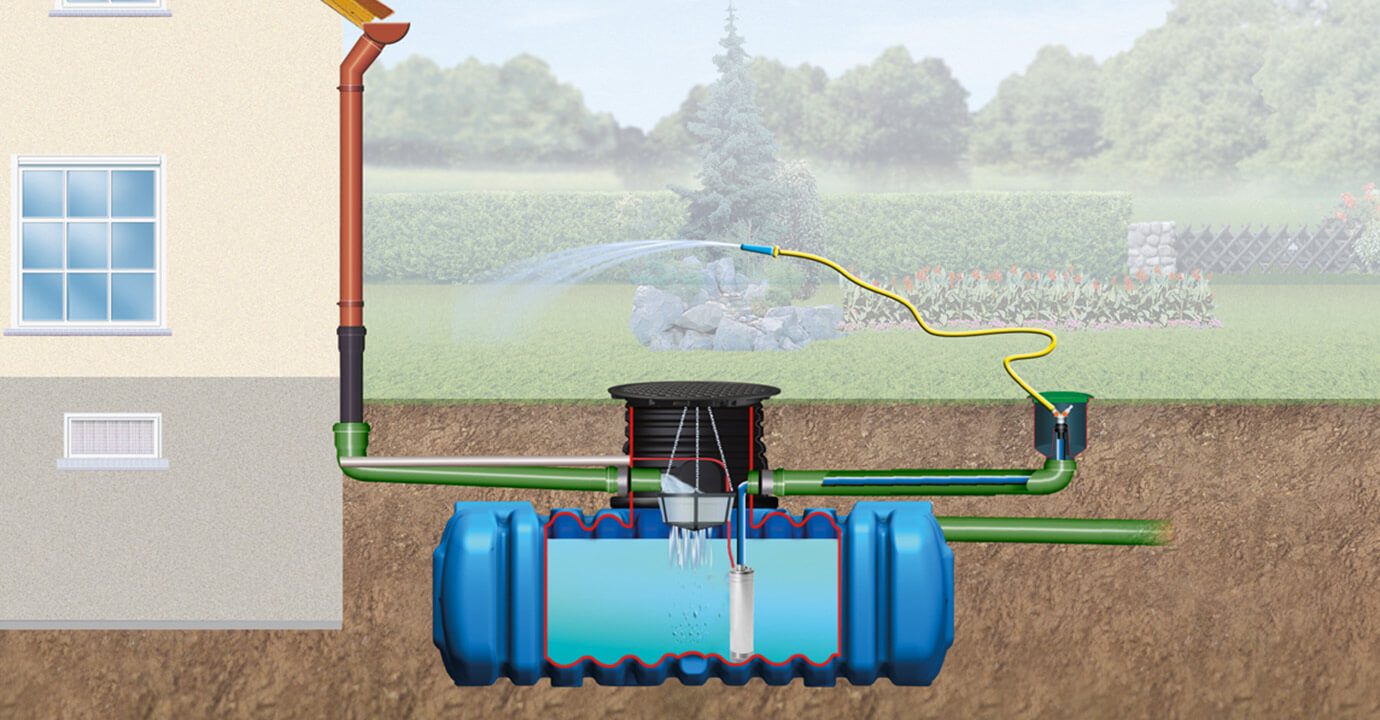

Complete Flat packages Garden-Comfort

Convenient and reliable

  • Draw water like electricity from a power socket
  • The submersible pump with integrated control offers you the greatest ease of operation (pump switches on and off automatically)

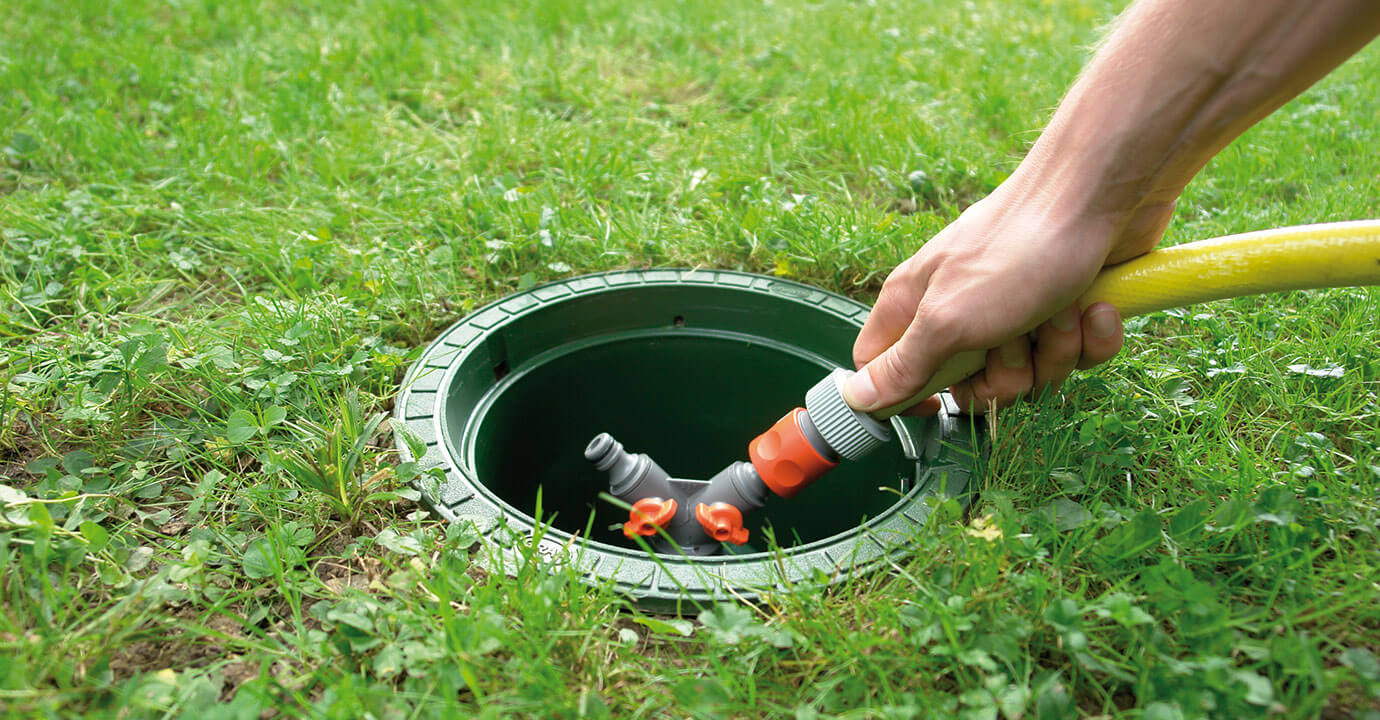

  • Convenient water extraction via water socket (compatible with
    standard hose coupling)

Scope of supply:

  • FLAT tank system with one connecting hole and integrated DN 100 (4") sealing
  • Shaft extension with two connecting holes and integrated sealings per tank
  • Childproof tank cover per tank
  • Connection set including drill
  • Filter package 1
  • Garden-Comfort pump package
Instructions Flat tank system
PDF 9.02 mb
Dimension drawing Flat S tank system 1500 l
PDF 251 kb
Dimension drawing Flat S tank system 3000 l
PDF 347 kb
Dimension drawing Flat S tank system 4500 l
PDF 441 kb
Dimension drawing Flat S tank system 6000 l
PDF 513 kb
Dimension drawing Flat M tank system 3000 l
PDF 258 kb
Dimension drawing Flat M tank system 6000 l
PDF 360 kb
Dimension drawing Flat M tank system 9000 l
PDF 461 kb
Dimension drawing Flat M tank system 12000 l
PDF 561 kb
Dimension drawing Flat L tank system 5000 l
PDF 293 kb
Dimension drawing Flat L tank system 10000 l
PDF 421 kb
Dimension drawing Flat L tank system 15000 l
PDF 548 kb

1.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295130 1500 2100 1320 750 80

3.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295131 3000 2100 2640 750 160

Set consits of 2 x 1,500 l

4.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295132 4500 2100 3960 750 240

Set consits of 3 x 1,500 l

6.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295133 6000 2100 5280 750 320

Set consits of 4 x 1,500 l

3.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295136 3000 2450 1600 1070 115

6.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295137 6000 2450 3200 1070 230

Set consits of 2 x 3,000 l

9.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295138 9000 2450 4800 1070 345

Set consits of 3 x 3,000 l

12.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295139 12000 2450 6400 1070 460

Set consits of 4 x 3,000 l

5.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295153 5000 2450 2100 1340 240

10.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295154 10000 2450 4200 1340 480

Set consits of 2 x 5,000 l

15.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295155 15000 2450 6300 1340 720

Set consits of 3 x 5,000 l

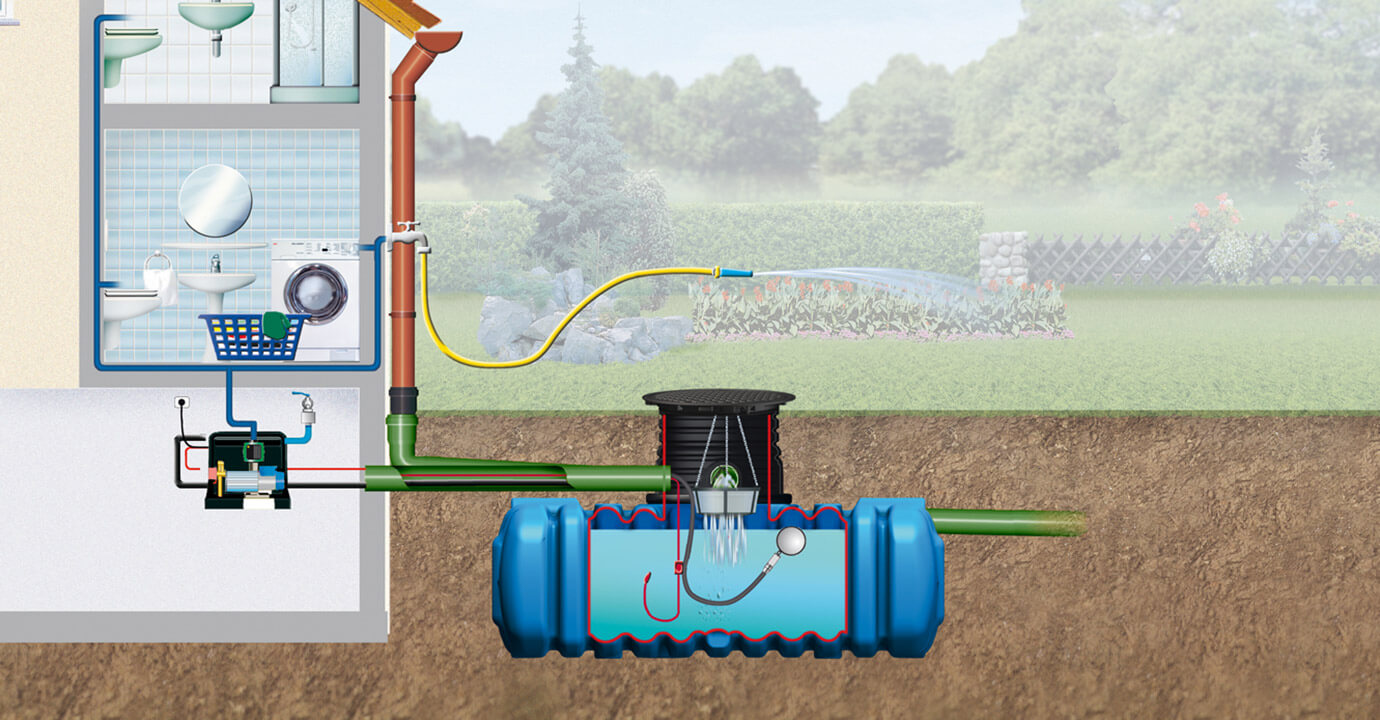

Complete Flat packages Home-Premium

State of the art

  • Only two basic components need to be installed – ideal for self installations
  • An empty tank activates an internal process that transfers the required quantity of drinking water to the service water mains
  • High quality drinking water intake module with quiet-running brand centrifugal pump

Scope of supply:

  • Flat tank system with one connecting hole and integrated sealing
  • Shaft extension with two connecting holes and integrated sealings per tank
  • Childproof tank cover per tank
  • Connection set including drill
  • Filter package 1
  • Home-Premium pump package
Instructions Flat tank system
PDF 9.02 mb
Dimension drawing Flat M tank system 3000 l
PDF 258 kb
Dimension drawing Flat M tank system 6000 l
PDF 360 kb
Dimension drawing Flat M tank system 9000 l
PDF 461 kb
Dimension drawing Flat L tank system 5000 l
PDF 293 kb
Dimension drawing Flat L tank system 10000 l
PDF 421 kb
Dimension drawing Flat L tank system 15000 l
PDF 548 kb

3.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295145 3000 2450 1600 1070 115

6.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295146 6000 2450 3200 1070 230

Set consits of 2 x 3.000 l

9.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295147 9000 2450 4800 1070 345

Set consits of 3 x 3,000 l

5.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295149 5000 2450 2100 1340 240

10.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295150 10000 2450 4200 1340 480

Set consits of 2 x 5,000 l

15.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295151 15000 2450 6300 1340 720

Set consits of 3 x 5,000 l

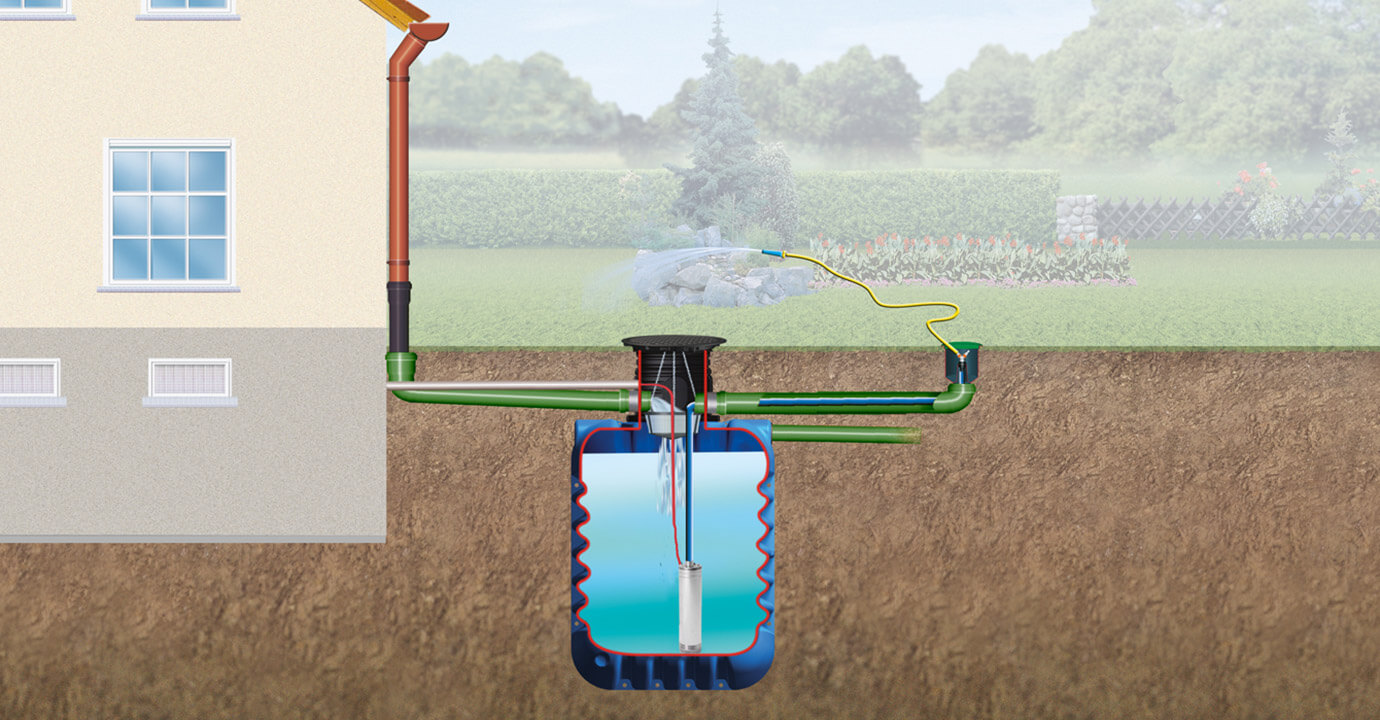

Complete Modularis packages Garden-Comfort

Convenient and reliable

  • Draw water like electricity from a power socket
  • The submersible pump with integrated control offers you the greatest ease of operation (pump switches on and off automatically)
  • Convenient water extraction via a water hose connection box

Scope of supply:

  • Modularis tank system with one connecting hole and integrated sealing
  • Shaft extension with two connecting holes and integrated sealings
  • Childproof tank cover
  • Connection set including drill (from 5000 L)
  • Filter package 1
  • Garden-Comfort pump package



Instructions Modularis tank system
PDF 9.69 mb
Dimension drawing Modularis tank system 2500 l
PDF 557 kb
Dimension drawing Modularis tank system 5000 l
PDF 866 kb
Dimension drawing Modularis tank system 7500 l
PDF 1.15 mb
Dimension drawing Modularis tank system 10000 l
PDF 1.45 mb
Dimension drawing Modularis tank system 12500 l
PDF 1.74 mb
Dimension drawing Modularis tank system 15000 l
PDF 2.05 mb

2.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295028 2500 1190 1470 2010 87

5.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295029 5000 2300 1470 2010 174

Set consits of 2 x 2,500 l

7.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295030 7500 3460 1470 2010 261

Set consits of 3 x 2,500 l

10.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295031 10000 4610 1470 2010 348

Set consits of 4 x 2,500 l

12.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295032 12500 5760 1470 2010 435

Set consits of 5 x 2.500 l

15.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295033 15000 6910 1470 2010 522

Set consits of 6 x 2,500 l

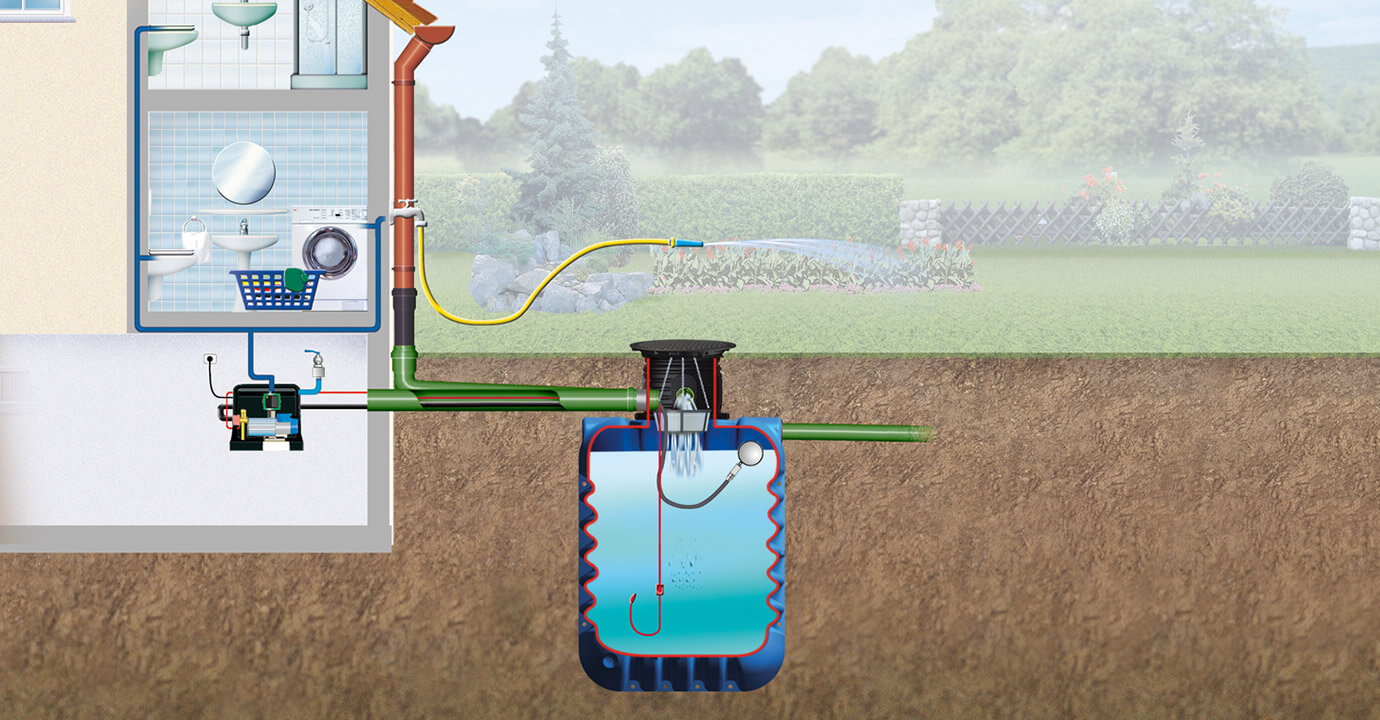

Complete Modularis packages Home-Premium

State of the art

  • Only two basic components need to be installed – ideal for self installations
  • An empty tank activates an internal process that transfers the required quantity of drinking water to the service water mains
  • High quality drinking water intake module with quiet-running brand
    centrifugal pump

Scope of supply:

  • Modularis tank system with one connecting hole and integrated sealing
  • Shaft extension with two connecting holes and integrated sealings
  • Childproof tank cover
  • Connection set including drill
  • Filter package 1
  • Home-Premium pump package
Instructions Modularis tank system
PDF 9.69 mb
Dimension drawing Modularis tank system 5000 l
PDF 866 kb
Dimension drawing Modularis tank system 7500 l
PDF 1.15 mb
Dimension drawing Modularis tank system 10000 l
PDF 1.45 mb
Dimension drawing Modularis tank system 12500 l
PDF 1.74 mb
Dimension drawing Modularis tank system 15000 l
PDF 2.05 mb

5.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295034 5000 2300 1470 2010 174

Set consits of 2 x 2,500 l

7.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295035 7500 3460 1470 2010 261

Set consits of 3 x 2,500 l

10.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295036 10000 4610 1470 2010 348

Set consits of 4 x 2,500 l

12.500 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295037 12500 5760 1470 2010 435

Set consits of 5 x 2,500 l

15.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295038 15000 6910 1470 2010 522

Set consits of 6 x 2.500 l

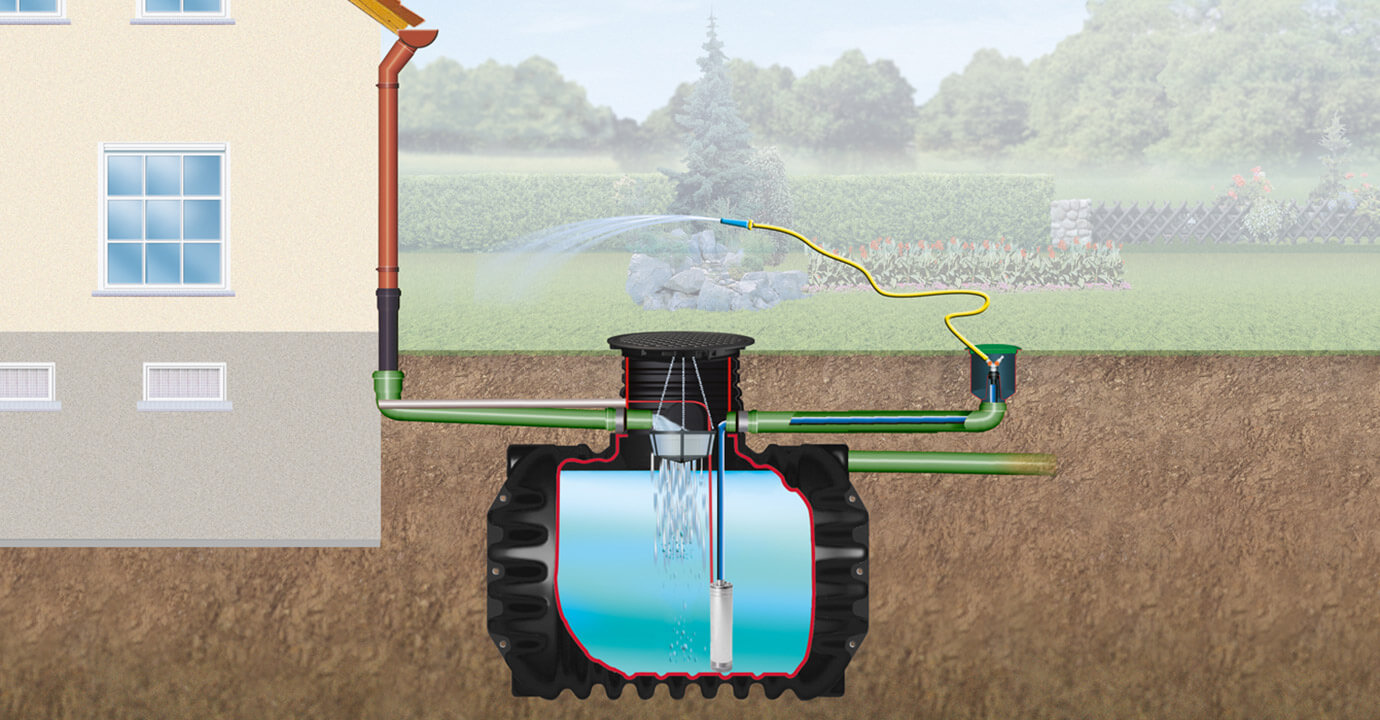

Complete Compact packages Garden-Comfort

Convenient and reliable

  • Draw water like electricity from a power socket
  • The submersible pump with integrated control offers you the greatest ease of operation (pump switches on and off automatically)
  • Convenient water extraction via water socket (compatible with standard hose coupling)

Scope of supply:

  • Compact tank system with one connecting hole and integrated DN 100 sealing
  • Shaft extension with two connecting holes and integrated sealings
  • Childproof tank cover
  • Filter package 1
  • Garden-Comfort pump package
Instructions Compact tank system
PDF 6.67 mb
Dimension drawing Compact tank system 1600 l
PDF 920 kb
Dimension drawing Compact tank system 2650 l
PDF 763 kb

1.600 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295310 1600 2100 1050 1180 65

2.650 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295311 2650 2100 1300 1460 100

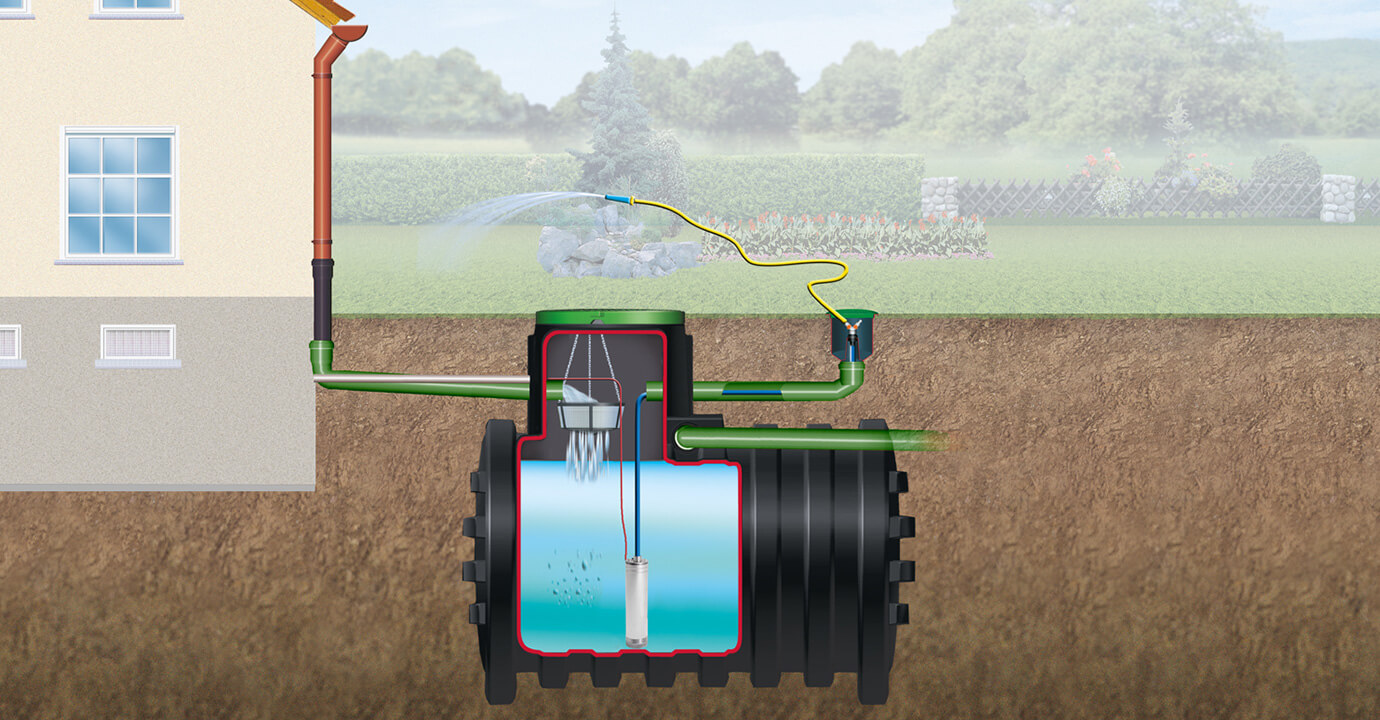

Complete Mono packages Garden-Comfort

Convenient and reliable

  • Draw water like electricity from a power socket
  • The submersible pump with integrated control offers you the greatest ease of operation (pump switches on and off automatically)
  • Convenient water extraction via a water hose connection box

Scope of supply:

  • Mono tank system incl moulded tank dome
  • Childproof tank cover
  • Filter package 1
  • Garden-Comfort pump package



Instructions Mono tank system
PDF 518 kb
Dimension drawing Mono tank system 3000 l
PDF 85 kb
Dimension drawing Mono tank system 4000 l
PDF 124 kb
Dimension drawing Mono tank system 5000 l
PDF 84 kb
Dimension drawing Mono tank syste 6800 l
PDF 85 kb

3.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295050 3000 2350 1400 1900 150

4.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295051 4000 2420 1500 2050 175

5.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295052 5000 2450 1830 2170 230

6.800 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295053 6800 2450 2000 2400 290

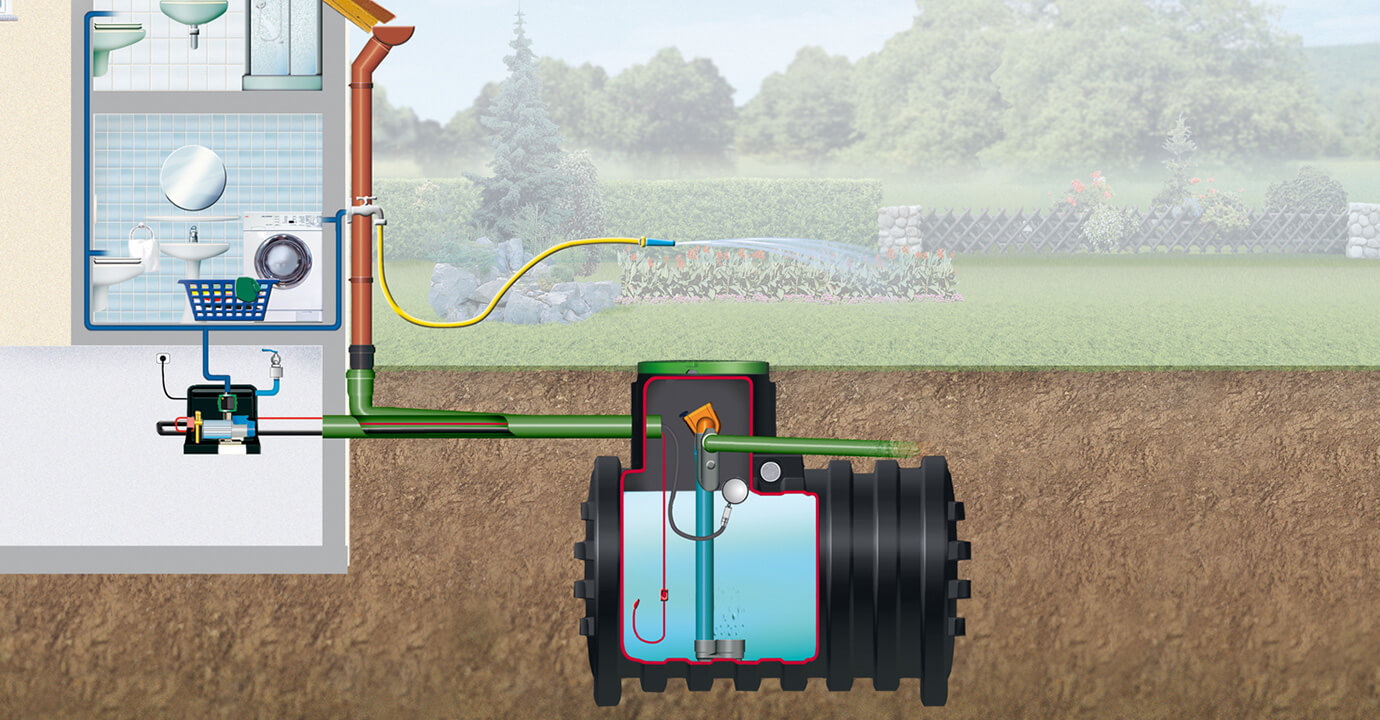

Complete Mono packages Home-Premium

With integrated Supra filter technology

  • Only two basic components need to be installed – ideal for self installations!
  • An empty tank activates an internal process that transfers the required quantity of drinking water to the industrial water mains
  • High quality drinking water intake module with quiet-running brand
    centrifugal pump

Scope of supply:

  • Mono tank system incl moulded tank dome
  • Childproof tank cover
  • Filter package 2
  • Home-Premium pump package
Instructions Mono tank system
PDF 518 kb
Dimension drawing Mono tank system 4000 l
PDF 124 kb
Dimension drawing Mono tank system 5000 l
PDF 84 kb
Dimension drawing Mono tank syste 6800 l
PDF 85 kb

4.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295056 4000 2420 1500 2050 175

5.000 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295057 5000 2450 1830 2170 230

6.800 l

Order.-Nr. Volume [l] Length [mm] Width [mm] Height [mm] Weight [kg]
295058 6800 2450 2000 2400 290

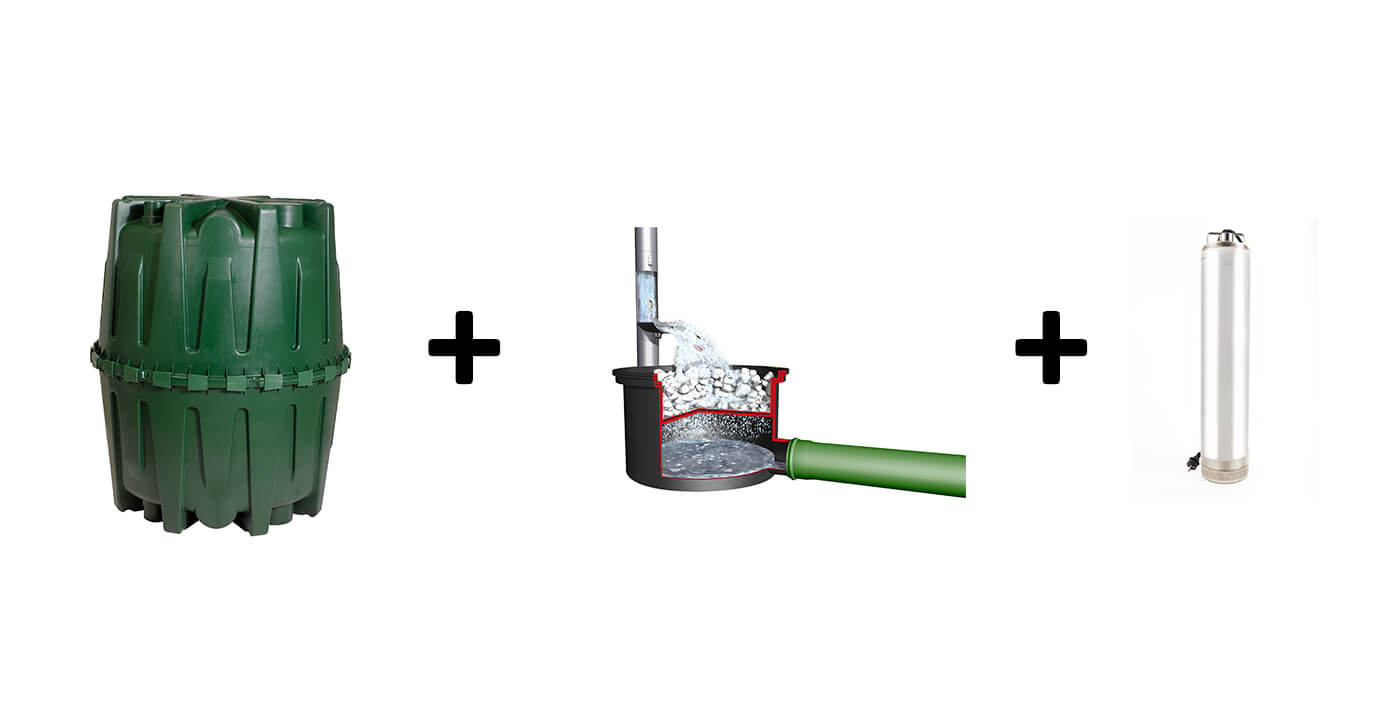

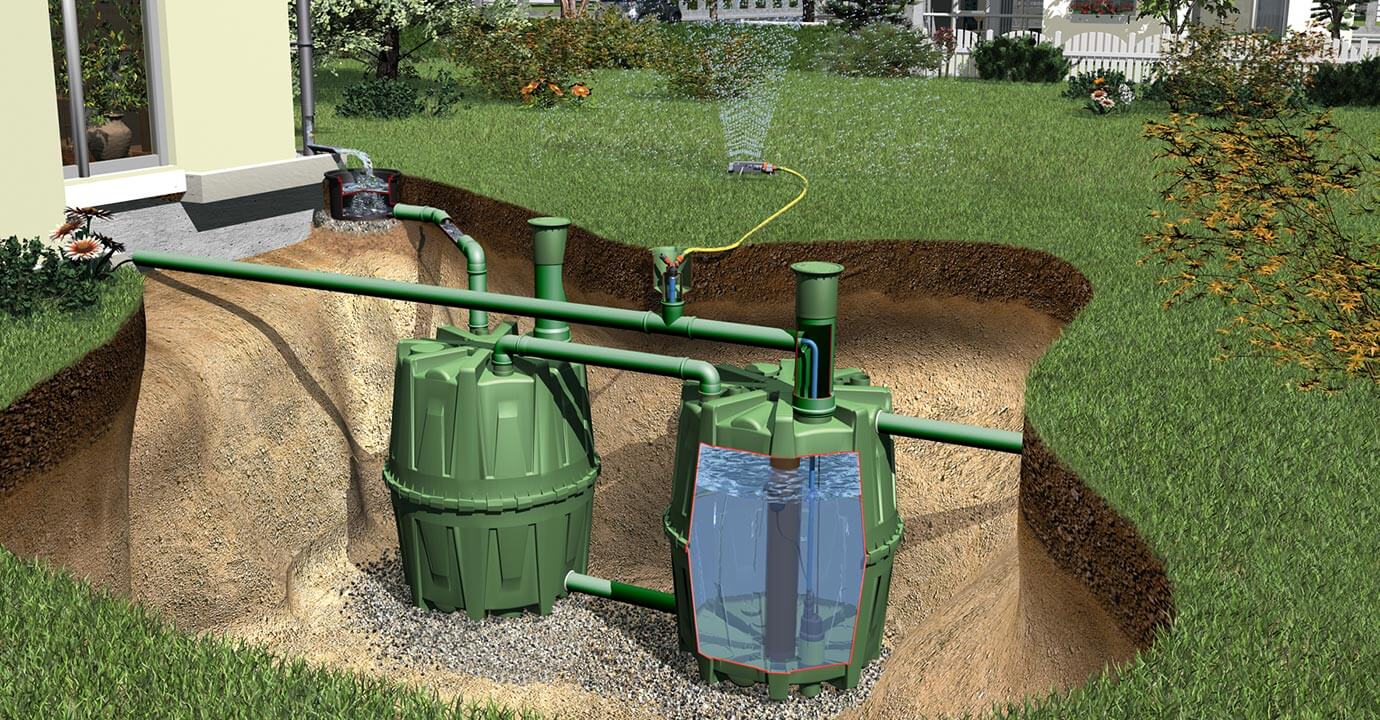

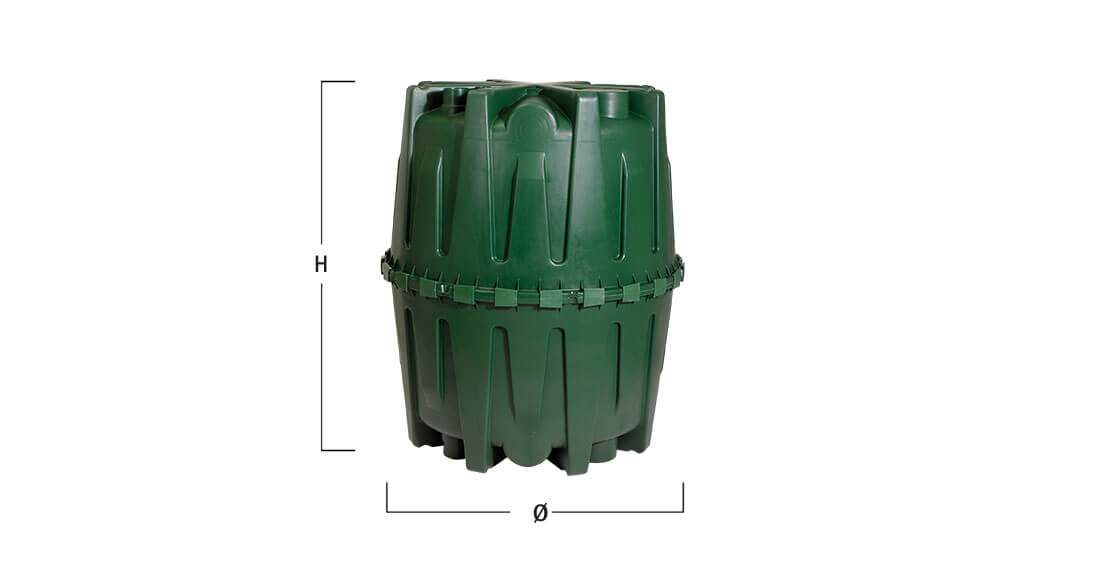

Herkules package Garden

  • Good value system solution
  • Tanks made from glass fibre reinforced polypropylene, very stable
  • Fast connection (assembly is effected without screws)

Application:

  • Complete  package for garden irrigation including all system components
  • Only for underground installation
  • Can be installed in groundwater up to the top of the tank
  • Tank halves only 780 mm high; fit through every 800 mm standard door





1.600 l

Order.-Nr. Volume [l] Height [mm] Weight [kg] Ø max. [mm] Length [mm]
321018 1600 1600 60 1350 1350
Width [mm]
1350

3.200 l

Order.-Nr. Volume [l] Height [mm] Weight [kg] Ø max. [mm] Length [mm]
321015 3200 1600 60 1350 2730
Width [mm]
1350
Technical data Herkules-Tank 1,600 l / Set consists of 2 tanks

4.800 l

Order.-Nr. Volume [l] Height [mm] Weight [kg] Ø max. [mm] Length [mm]
321016 4800 1600 60 1350 4135
Width [mm]
1350
Technical data Herkules-Tank 1,600 l / Set consists of 3 tanks

Herkules package home and garden

  • Good value complete solution
  • In-house drinking water intake
  • Controlled by floating switch



Application:

  • Complete  package for household use including all system components
  • Can be installed in groundwater up to the top of the tank
  • KG or HT pipes have to be provided on site
  • Intake is controlled via microprocessor with fill level display
  • Tank halves only 780 mm high; fit through every standard 800 mm door

3.200 l

Order.-Nr. Volume [l] Height [mm] Weight [kg] Ø max. [mm] Length [mm]
321010 3200 1600 60 1350 2730
Width [mm]
1350
Technical data Herkules-Tank 1,600 l / Set consists of 2 tanks

4.800 l

Order.-Nr. Volume [l] Height [mm] Weight [kg] Ø max. [mm] Length [mm]
321011 4800 1600 60 1350 4135
Width [mm]
1350
Technical data Herkules-Tank 1,600 l / Set consists of 3 tanks

6.400 l

Order.-Nr. Volume [l] Height [mm] Weight [kg] Ø max. [mm] Length [mm]
321012 6400 1600 60 1350 5540
Width [mm]
1350
Technical data Herkules-Tank 1,600 l / Set consists of 4 tanks
